Menestys represents Tempo Communications – a manufacturer of a complete line of innovative and industry-leading test & measurement solutions for the communication service provider industry. While we focus on the tools and instruments for PON networks, we are happy to offer the full line of products, manufactured by Tempo.

Featured products of Tempo for PON environment:

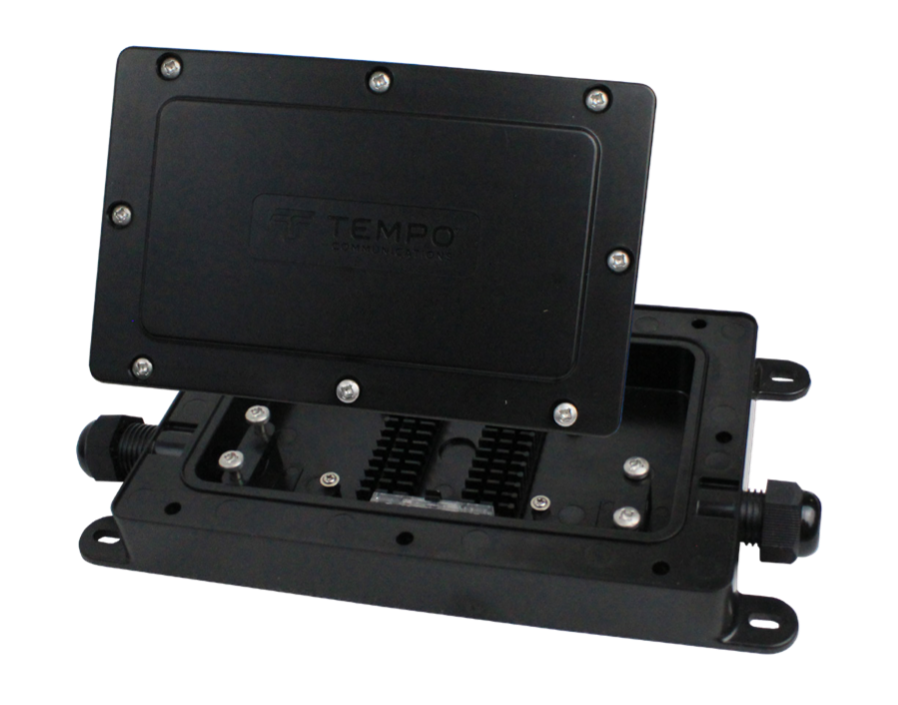

DROP FIBER REPAIR KIT

The Drop Fiber Repair Kit is used to facilitate repairs of fiber optic cables.

Common fiber sizes of 8.1mm, 5.4mm and 5.1mm rectangular cables and 5.1mm round cables are accommodated with the supplied sealing gaskets. Both fusion splices (total of 12) and two mechanical splices are securely positioned within the IP67 rated enclosure.

The enclosure can be permanently buried, mounted on to the side of a building or can be mounted onto pole brackets. Two DFR100 enclosures are typically used to repair a drop fiber as there is not enough slack cable to reconnect the fibers. The DFR100 can also be used as a demarcation point at the premises.

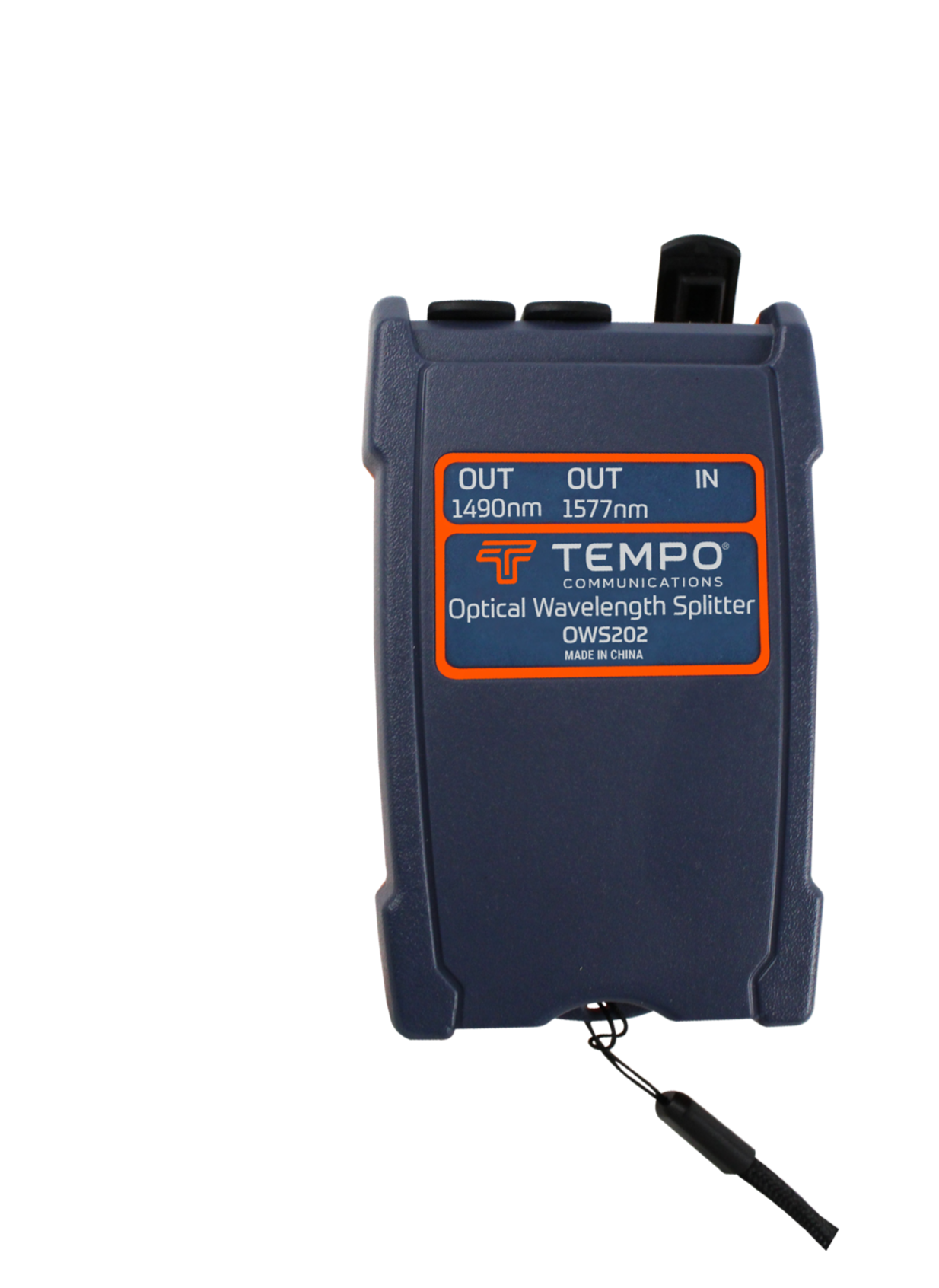

OPTICAL WAVELENGTH SPLITTER

The Optical Wavelength Splitter (OWS200) is used to separate the various wavelengths that may be present in a NGPON2 system to measure each specific signal level.

A standard optical power meter such as the OPM510 or OPM210 can then be used to measure each signal without the need to purchase a costly DWDM OPM. The optical loss of the OWS200 is typically less than 0.1dB and as a result has marginal influence on the measurements.

Currently the OWS200 supports two individual wavelengths but systems with four and eight are also possible. The user selects the model that supports the system wavelengths that they intend to measure, which determines the model of OWS200.
