Dasan-Zhone Solutions
We are enabling the winners of a hyper-connected world
A pioneer in disaggregated platforms, SDN, and virtualization, DZS provides service providers and enterprises with the innovation that leads to future-proof networks and outstanding performance. The DZS team strive to arm the customers with the agility, network resources and deployment freedom they need to lead in their markets and deliver an unrivaled communications experience.
Menestys OOD represents the products of DZS on the market of Central and Eastern Europe. We work with System Integrators and Resellers of the products to ensure widest product availability and highest competence level at the disposal of our Customers – Telco and CaTV operators and Enterprise companies, implementing the latest standards of optical networking.
DZS Advantages
Whether providing fiber the full way to the home or to the enterprise, or to the building or an outside smaller distribution point or a full cabinet on the curb, DZS has the full set of FTTx solutions. As the copper part of the network gets shorter and shorter, DZS supplies solutions, both for the current need and a migration path to the future.
Next generation 10 Gigabit PON services provide higher bandwidth, for both the evolution of converged residential, business and backhaul services and distribute access at lower cost than point to point services. However DZS understands no one solution solves all network issues. DZS combines PON and Active Ethernet and VDSL2 and G.FAST in numerous ways to provide the best possible solution for each situation.
With services that include design, installation, roll out, commissioning, acceptance testing, management and maintenance, DZS provides a carefully coordinated plan taking your organization into the future.
OLT Equipment
Menestys offers the full range of OLT equipment of DZS – both the MXK series and the V-8100 series. The V-8100 series of products are mostly targetted to operators, who already operate GPON network service, based on the legacy DASAN equipment. To new customers we recommend the new MXK series from DZS, which offer even higher flexibility in building the infrastructure for innovative services and selecting a wide range of Optical Terminals (ONT).

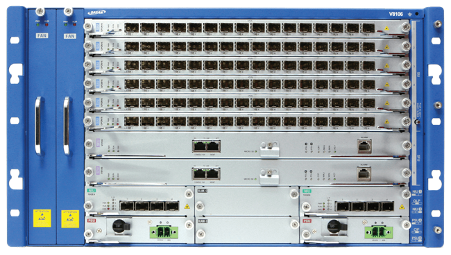

V-8100 OLT Series
With advanced global customers deploying DZS’s world-class solutions for their service provider and enterprise networks, in some of the harshest and most demanding environments in the industry.
The DZS’s V-8100 series is the best in the class for high-capacity fiber-optimized aggregation platform is the latest cost-effective addition to its world-renowned MXK™ portfolio.
FTTH NG-PON2/XGS-PON/GPON OLT
The V-8100 series platform series is designed to integrated several key functions and applications:
- Multiprotocol Label Switching (MPLS)
- Switching with Terabit capacity plus QoS for the new broadband optical access networks
- Transport Ring technology for resilient interconnection
- Access for any Fiber connection from 1GbE, 10GbE, 2.5GPON, NGPON and 25/100GbE
- Routing for high availability networking
MXK-F Series
With advanced global customers deploying DZS’s world-class solutions for their service provider and enterprise networks, in some of the harshest and most demanding environments in the industry.
The DZS’s MXK-F™ series is the best in the class for ultra high-capacity fiber-optimized aggregation platform is the latest cost-effective addition to its world-renowned MXK™ portfolio.
FTTx NG-PON2/XGS-PON/GPON/AE OLT
The MXK-F platform series is designed to integrated several key functions and applications:
- Switching with Terabit capacity plus QoS for the new broadband optical access networks
- Transport Ring technology for resilient interconnection
- Access for any Fiber connection from 1GbE, 10GbE, 2.5GPON, NGPON and 25/100GbE
- Routing for high availability networking
MXK-F™
Demands on access networks continue to accelerate, and technology advances change and evolves at light speed to cope with this growth. To build a platform with more than 10-years reach requires a networking innovator with extraordinary vision, proven bench strength and experience, and of course, exceptional technology to keep pace.
With over 1,000 global customers deploying DZS’s world-class solutions for their service provider and enterprise networks, in some of the harshest and most demanding environments in the industry in its pedigree, DZS’s MXK-F™ ultra high-capacity fiber-optimized aggregation platform is the latest cost-effective addition to its world-renowned MXK™ portfolio.
The MXK-F™ chassis architecture is designed around a dual star design with redundant ultra high-speed links to each subscriber line card slot for future-proof support of today’s and tomorrow’s bandwidth-hungry fiber-based subscriber services. Also MXK-F™ management control and aggregation switch fabric functions reside on two separate cards, each of which can be equipped in a redundant configuration; MCs (Management Cards) and FC (Fabric Cards). Lastly, a fully-distributed database and parallel firmware loading enable simple fast upgrades.
With a solid, wide foundation to build upon, MXK-F™ is well-suited as high-density fiber-based service platform to cost-effectively deliver ITU-T G.984 GPON, IEEE 802.3-2008 1 and 10Gb/s Active Ethernet, ITU-T G.987 XGPON1, ITU-T G.989 NGPON2, and other advanced fiber-based services for residential triple play and high-bandwidth business services over any FTTx architecture.
MXK-F™ Chassis

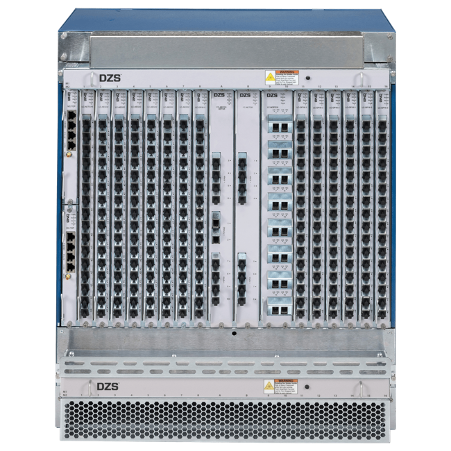

MXK-F1421 is designed to be fully-compliant to meet the ETSI EN 300 standard for indoor cabinets and contains 16-access multi-service subscriber slots, and 2-network facing slots. MXK-F1421 can be mounted directly into a 21″ wide rack, and into a 23″ rack with adapter brackets. The chassis is equipped with a cable management tray, easy fan access, and rear-powered redundant power feeds.
MXK-F1419 is also designed to be fully-compliant to meet the ETSI EN 300 standard for indoor cabinets and contains 14-access multi-service subscriber slots, and 2-network facing slots. MXK-F1419 can be mounted directly into a 19″ wide rack. The chassis is equipped with a cable management tray, easy fan access, and rear-powered redundant power feeds.

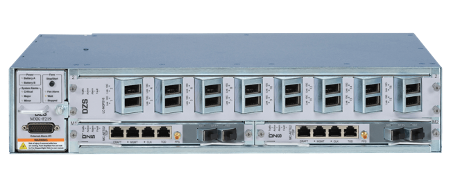

Rounding out the MXK-F™ product line is the MXK-F219. With its MXK-F14xx lineage, it has exactly the same high-capacity backplane and high-speed virtues found in its larger siblings – except on a 2U 19″ form factor.
A favorite in enterprise, hospitality, and academic applications, MXK-F219 contains 2-access multi-service subscriber slots, 2-network facing slots, and supports the exact same line cards as the MXK-F14xx.
That means whether being deployed by an enterprise IT director, or by a service provider servicing a niche market, MXK-219, like all members of the MXK-F™ family, provides plenty of future-proof capability for 1G to 40G Active Ethernet, as well as GPON, XGPON1, XGSPON, and NGPON2 service requirements, and future undefined services.
